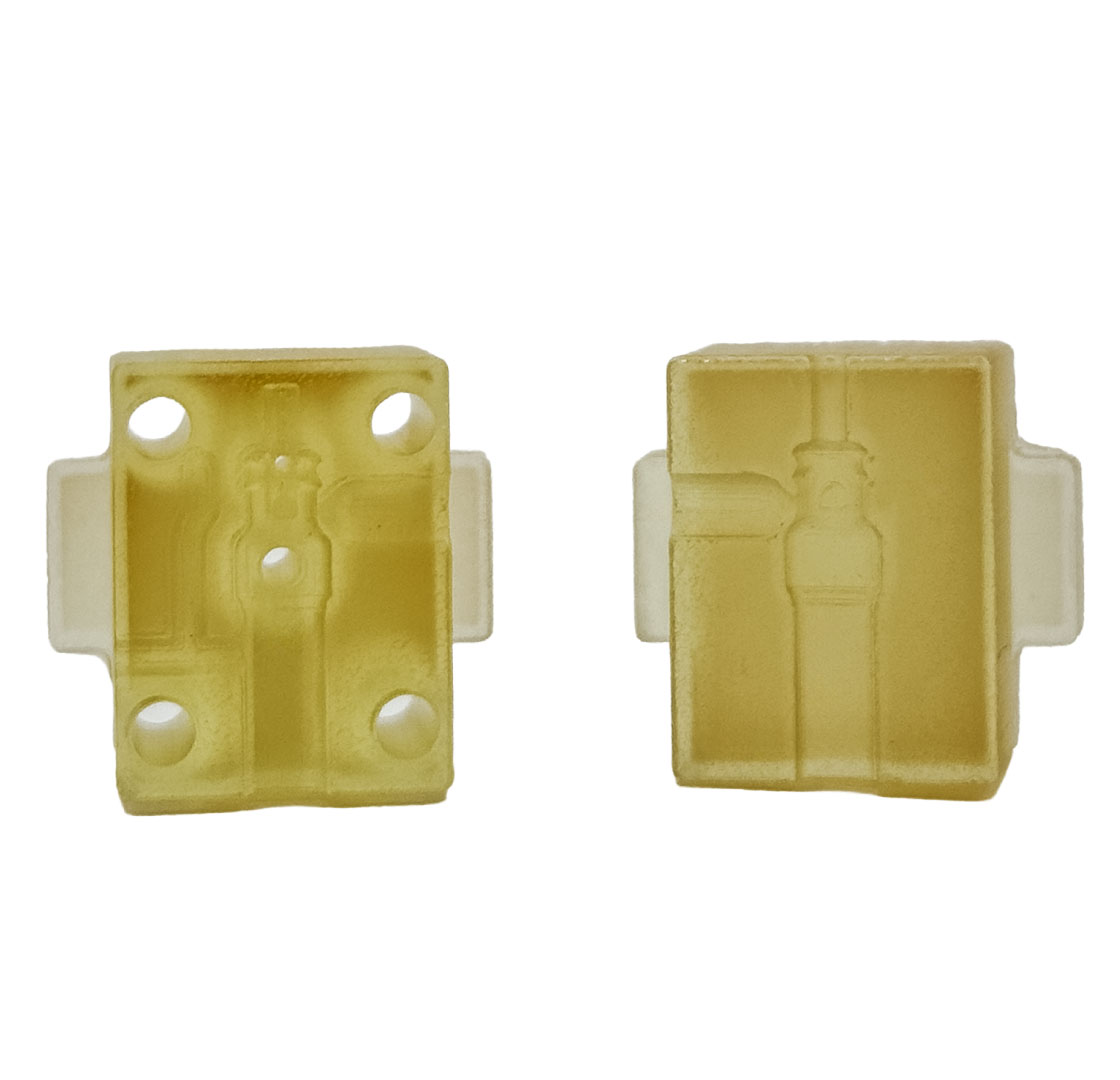

High Temperature Micro Molds
Manufacture Ultra-High Temperature Micro Tooling for Precision, Stability, and Thermal Performance
High Temperature Micro Molds sit at the intersection of micro-scale precision manufacturing and extreme thermal resistance. These tools enable production of fine-feature, high-resolution components while withstanding elevated processing temperatures required for specialized polymers, elastomers, and engineering materials.
Traditional metal tooling for micro-scale, high-temperature applications is expensive, slow to iterate, and difficult to modify during development. This creates a bottleneck in industries such as electronics, automotive, aerospace, microfluidics, and advanced consumer products where both thermal stability and micro-feature accuracy are critical.
Axtra Solutions for High Temperature Micro Molds combines the Lumia X1 powered by Hi-Speed SLA (HPS), validated high-temperature photopolymer systems including AMB-300, and fully controlled manufacturing workflows into a digital tooling solution that delivers production-grade micro molds in hours rather than weeks.
This enables rapid iteration of high-temperature tooling concepts, faster validation of micro-feature designs, and efficient low-volume manufacturing without compromising thermal performance or dimensional fidelity.
The Manufacturing Challenge
High temperature micro molding introduces two competing requirements:
Extreme thermal resistance to survive elevated processing conditions, and ultra-fine geometric precision to accurately reproduce micro-scale features.
Conventional tooling approaches struggle to balance both.
Metal micro tooling requires precision machining, EDM processes, and polishing steps that significantly extend lead times and increase cost. Iteration cycles are slow, making design optimization difficult.
At the same time, traditional polymer tooling is often unable to withstand high-temperature processing environments, limiting material compatibility and reducing application scope.
Manufacturers are therefore forced into a trade-off between thermal performance, micro-feature accuracy, cost, and development speed.
As micro-scale applications expand into more demanding industries, this limitation becomes increasingly restrictive.
The Axtra Solution
Axtra Solutions for High Temperature Micro Molds replaces conventional machining-heavy tooling workflows with a validated digital manufacturing process optimized for thermal resistance and micro-feature accuracy.
The complete solution integrates:
This combination enables production of micro-scale mold inserts and tooling with exceptional thermal resistance, fine feature fidelity, and dimensional accuracy.
Manufacturers can rapidly iterate mold designs, validate high-temperature process windows, and produce functional micro molds for prototyping, bridge tooling, and low-volume production.
Customer Value
Enable High-Temperature Micro Manufacturing
Produce micro-scale tooling capable of withstanding elevated thermal conditions required for advanced polymers and engineering resins.
This expands application scope beyond conventional polymer tooling limitations.
Accelerate Tooling Iteration Cycles
Move from CAD to functional high-temperature micro molds in hours instead of weeks.
Multiple design iterations can be evaluated within a single development cycle, improving optimization speed.
Reduce Dependence on Machined Metal Tooling
Eliminate or reduce reliance on expensive micro-machined steel or aluminum inserts during early-stage development and validation.
This significantly reduces cost and lead time.
Enable Complex Micro-Feature Geometries
Manufacture detailed geometries that are difficult to machine conventionally, including:
Improve Process Validation Speed
Manufacturers can validate high-temperature molding conditions earlier in development, including:
Support Low-Volume and Bridge Production
High-temperature micro molds enable economical production of small batches of precision parts while full-scale tooling is being developed or validated.
Why Hi-Speed SLA Makes the Difference
High-temperature micro tooling requires a combination of thermal stability, micro-scale precision, and repeatable manufacturing performance.
Hi-Speed SLA (HPS) enables this through controlled photopolymer processing that maintains both geometric accuracy and material integrity under demanding conditions.
Exceptional Dimensional Accuracy
Micro mold cavities require tight tolerance control to ensure correct part formation at small scales.
TruLayer™ technology ensures consistent geometry reproduction across builds, enabling reliable micro-feature accuracy.
Thermal Stability Through Qualified Materials
AMB-300 is designed for ultra-high temperature environments, providing exceptional heat resistance required for demanding molding processes.
This enables micro tooling applications previously limited to metal-only solutions.
High-Fidelity Micro Feature Reproduction
Fine textures, small channels, sharp edges, and detailed cavities are accurately reproduced without loss of resolution.
This supports advanced microfluidic, electronic, and precision molding applications.
Smooth Surface Quality
Surface finish is critical in micro molding due to its direct impact on flow behavior, demolding performance, and final part quality.
HPS produces smooth cavity surfaces that reduce post-processing requirements.
Rapid Tool Production
Micro molds can be produced directly from CAD data in hours, enabling fast iteration and accelerated validation of thermal and geometric design parameters.
Repeatable Manufacturing
Validated process parameters ensure consistent mold quality across multiple builds, supporting predictable performance in development and production environments.
Qualified Material
AMB-300 Ultra-High Temperature Photopolymer
Axtra Solutions for High Temperature Micro Molds is built around AMB-300, an ultra-high temperature resistant photopolymer designed for demanding thermal and functional tooling applications.
AMB-300 provides industry-leading heat resistance with a heat deflection temperature exceeding 300°C, enabling use in high-temperature molding environments and process validation workflows where thermal stability is critical.
Material Highlights
Functional Role in Axtra Workflow
Within Axtra Solutions, AMB-300 is deployed as a validated tooling material, enabling micro molds to transition directly from digital design to functional high-temperature testing environments.
This ensures repeatable performance across:
Typical Applications
Axtra Solutions for High Temperature Micro Molds supports advanced manufacturing across multiple industries:
Performance Highlights
Why Axtra Solutions
Axtra Solutions for High Temperature Micro Molds integrates the Lumia X1, Hi-Speed SLA technology, AMB-300, validated process parameters, and Axtra.Workflow into a unified production system for thermal micro tooling.
This enables manufacturers to eliminate traditional trade-offs between thermal performance, micro-scale precision, and development speed. The result is faster validation cycles, lower tooling cost, and reliable production of high-temperature micro molds capable of supporting advanced engineering applications across demanding industries.
